Em Bose (EB)
3.2″ Touchscreen HMI
The Em Bose (EB) 3.2″ HMI is a compact & rugged Automation Controller with powerful digital processing power.
Built with a 3.2 Inch Touchscreen Display, the Controller based HMI is enabled with flexible communication interfaces, multiple Analog & Digital IO’s, programmable set points & individual relay’s.
About
Our Endpoint Services & Solutions for Em Bose ( EB )
Multiple Connectivity Options
Armed with optional Wi- Fi and Bluetooth Connectivity, the Em Bose (EB) 3.2″ Touchscreen HMI has been enabled with IIoT Gateway functionality, wherein the device can send status reports, data log files, and alarm notifications to various servers over a corporate Wi – Fi Network.
Embedded Web Server
With an Embedded Web server and a remote boot loader, the Em Bose (EB) HMI can transition into a platform independent, Web browser based Viewing Platform.
Remote – OTA Updates
With a Wi-Fi / Bluetooth enabled Laptop or smart phone, the Em Bose ( EB ) –3.2″ Touchscreen HMI can be troubleshooted effortlessly. It can undergo remote firmware and program upgrades with ease, without having to look for network access point’s and carry loose cables.
PRODUCT HIGHLIGHTS OF Em Bose ( EB )
-
Embedded Web Server
-
Optional CAN Bus Interface
-
RS 485 for Serial Printer or PC Connectivity
-
Equipped with Bluetooth Connectivity
-
Optional Wi-Fi Connectivity for IoT Functions.
-
Remote Firmware & Program Update with Boot Loader
-
Multiple Analog & Digital IO’s.
-
3.2 Inch Touch Screen Colour Display.
-
Optional Local Web Browser Display
Em Bose (EB) 3.2" Touchscreen HMI Specifications
| • Dimensions (in mm, l x b x h) | 96 x 96 x75 |
| • Processor/ Speed | Dual-core 32-bit LX6, 240 MHz |
| • RAM | 520 KB RAM |
| • Memory (Internal/ SD CARD) | 2 MB Internal / 8-32 GB SD Card |
| • Digital Inputs (24V DC)*~/ Frequency Inputs (1 kHz) | 6 |
| • Digital Outputs** (Solid state, NPN, 100 mA) | 6 |
| • Digital Outputs (Relay/ Potential free) | 2 |
| • Analog Inputs (15 bit): Voltage ( 0…10V, 1…10V) / Current (0…20mA, 4…20mA) | 4 |
| • Analog Output (12 bit): Voltage (0…10V, 1…10V) / Current (0…20mA, 4…20mA) | 1 |
| • RS-485 Interface | 1 |
| • CAN Bus Interface (CAN 2.0B with hardware filtering) | *Optional |
| • Wi-Fi Interface | *IEEE 802.11 b/g/n (150 Mbps) (2.4 GHz) |
| • Bluetooth Interface (BLE) | *Bluetooth v4.2 BR/EDR and BLE specification |
| • RTC | Yes |
| • Remote Firmware Upgrade | Yes |
| • Display | 3.2” Touch Screen |
| • Field Protocols (Selectable)* | Modbus RTU, Modbus TCP***, CAN Open, SAE J1939 |
| • IoT Connectivity Protocols | TCP, HTTP, MQTT |
| • Security (Encrypted Data Transmission Protocols) | HTTPS, MQTT with TLS |
| • Programmability | Custom program |
| • User Interface | 3.2” Touch Screen / Web Page on Embedded Web Server |
| • Operating Voltage | 10 to 30V DC / 100 to 240V AC |
| • Operating Temperature | 0 to 60°C |
| • Operating Humidity max. | 95%, non-condensing |
| • IP degree of protection |
| Details Following * | Optional Features |
| Digital Outputs ** | No Short Circuit Protection |
| Modbus TCP *** | Modbus TCP on WiFi |
| Digital Inputs (24V DC) *~ | PNP inputs or Potential free contact by default, NPN consideration on request |
STANDARD EM BOSE ( EB ) APPLICATIONS
-
Two channel window controller
-
Vehicle Skew Monitor
-
Direction Counter
-
Velocity Measurement
-
Length/Distance Measurement
-
RFID Indicator
-

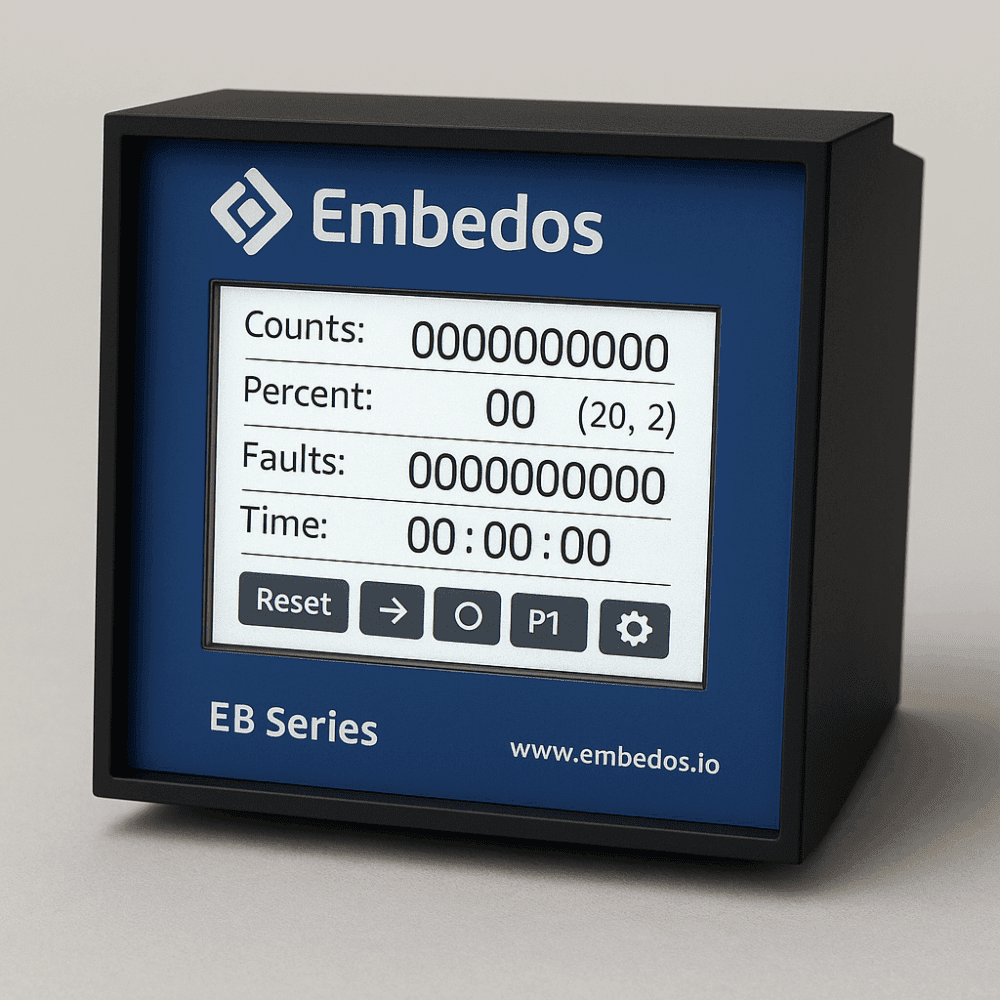

Counter/Timer/Indicator
-
Flow Totalizer
-
Tank Fill Control
-
Level Measurement of open/close/capsule tanks
-

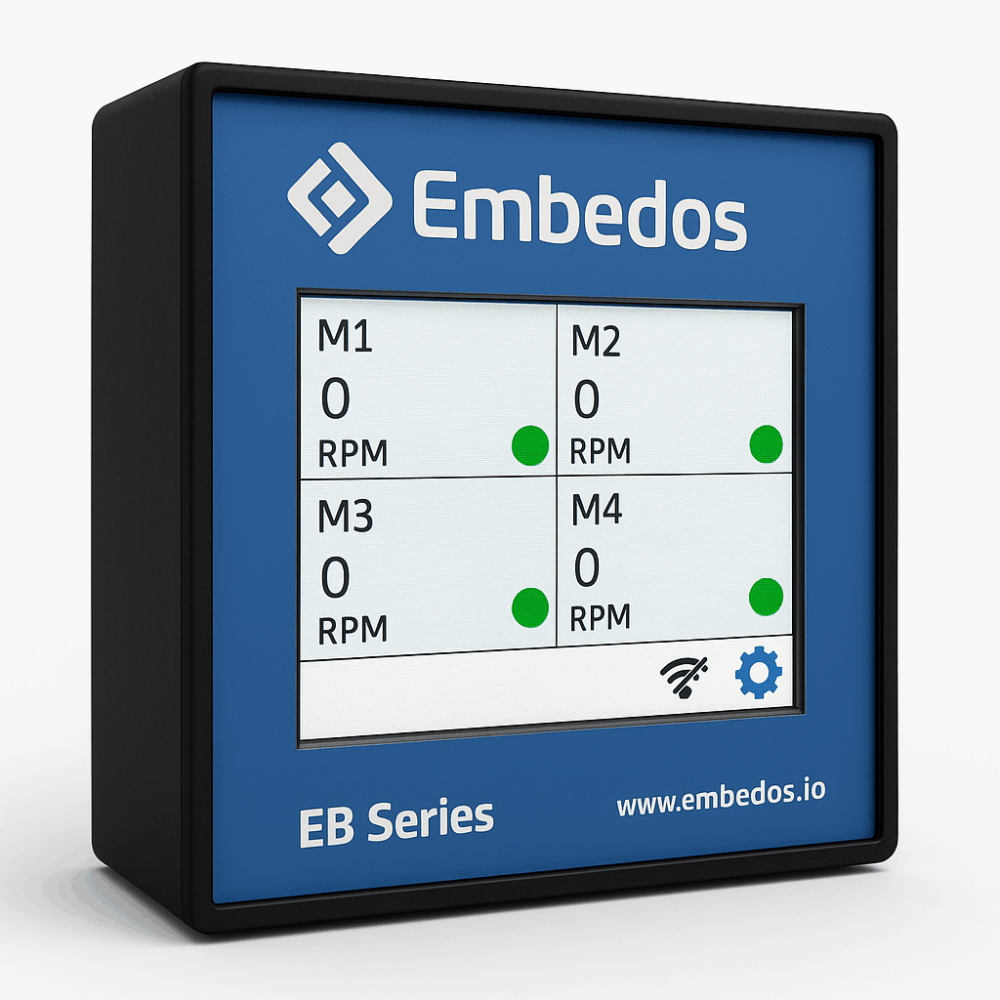

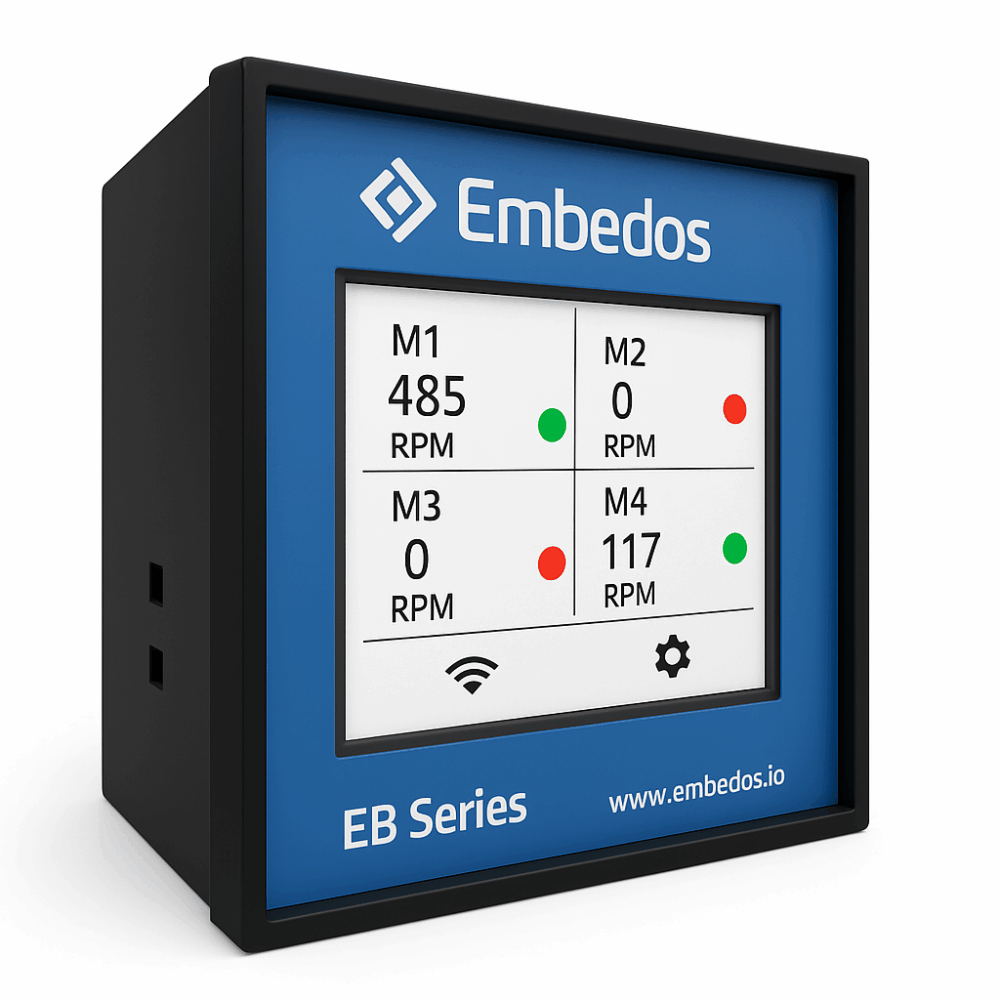

Conveyor Speed Measurement
-
Touchscreen Resistance Display Tank Fill Control
-

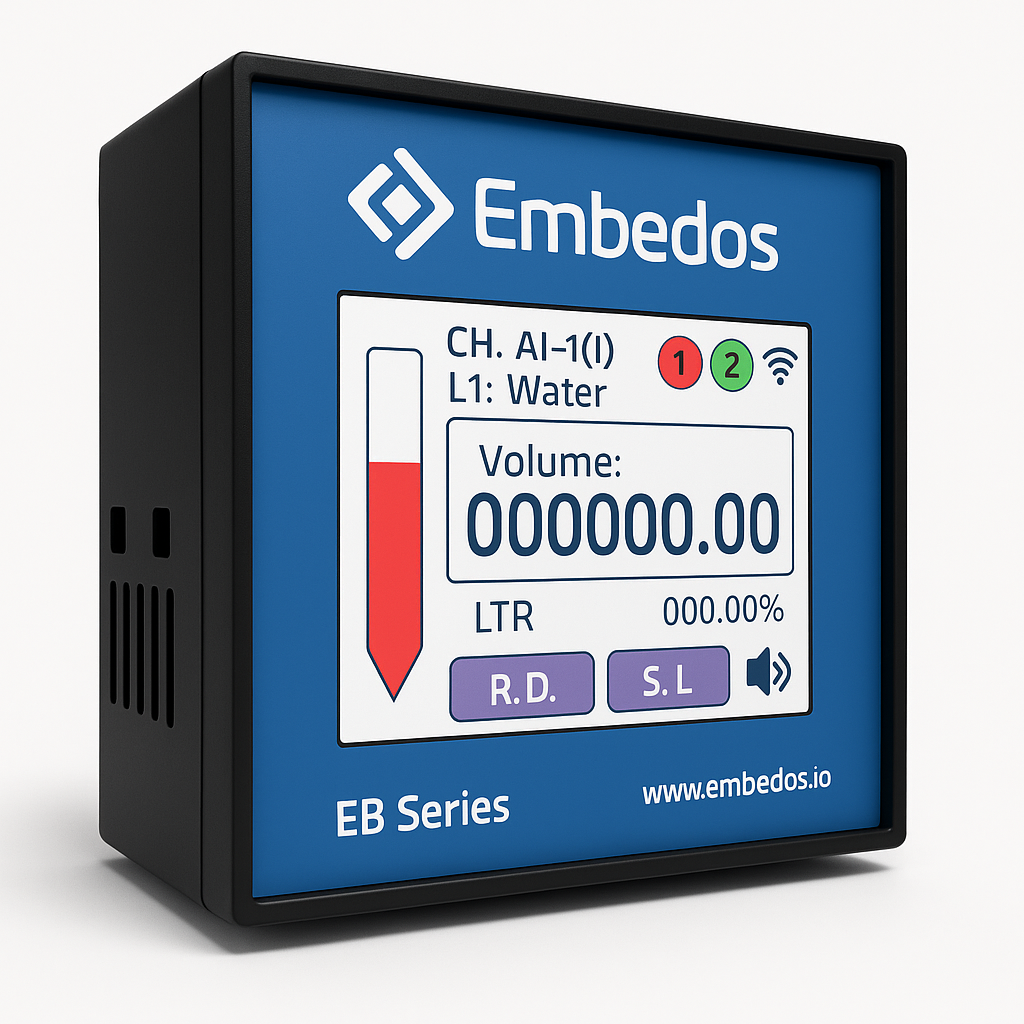

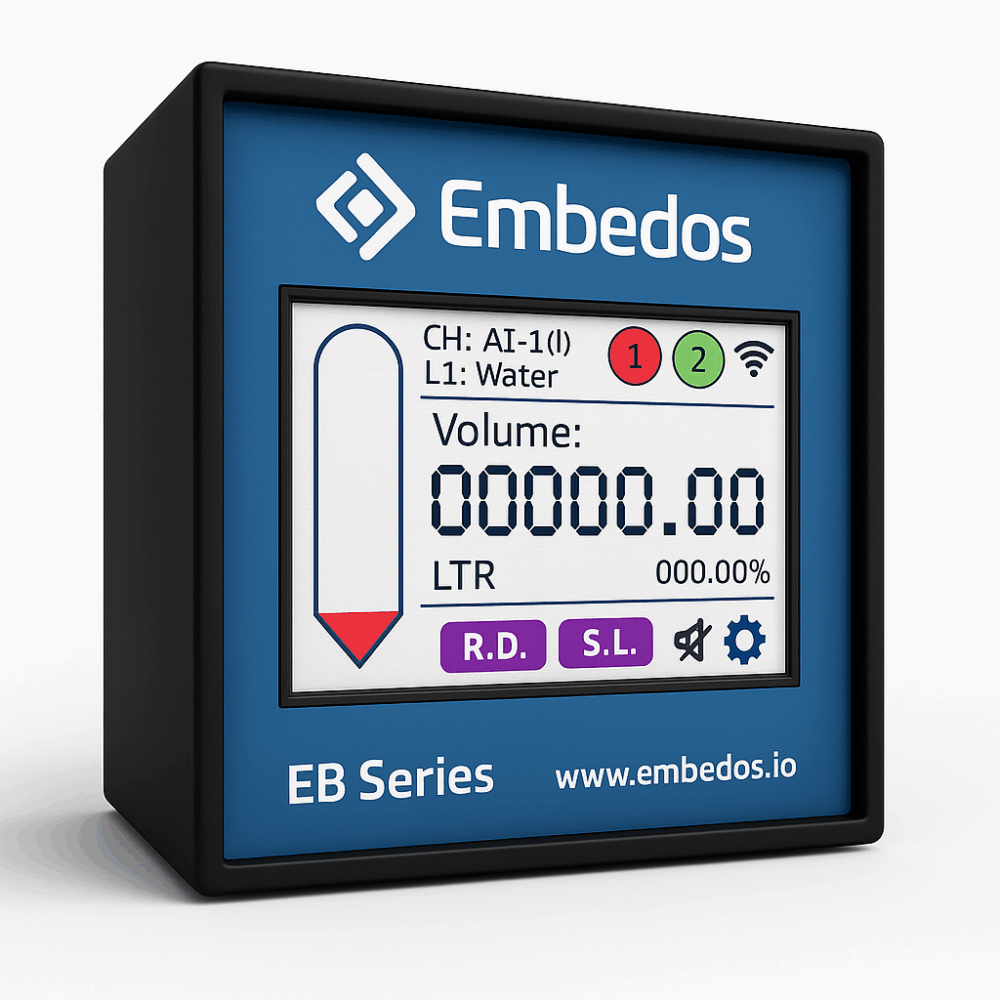

Volume Measurement
-
Channel Scanner
-
Production Counter
-
Custom Applications
