Edge IoT Gateway
Embedos, Mumbai.
Em Edison (EE) Series
-
PLC-Free Edge Intelligence
Eliminates the need for a PLC by combining data acquisition, control logic, and IIoT gateway functionality in a single programmable device.
-
End-to-End Cloud Connectivity
Captures, transfers, and visualizes machine data seamlessly with a built-in, ready-to-use cloud-based web application.
-
Universal Field Compatibility
Interfaces directly with PLCs, industrial machines and all types of Sensors making it plug-and-play for installations, enabling rapid IIoT deployment.

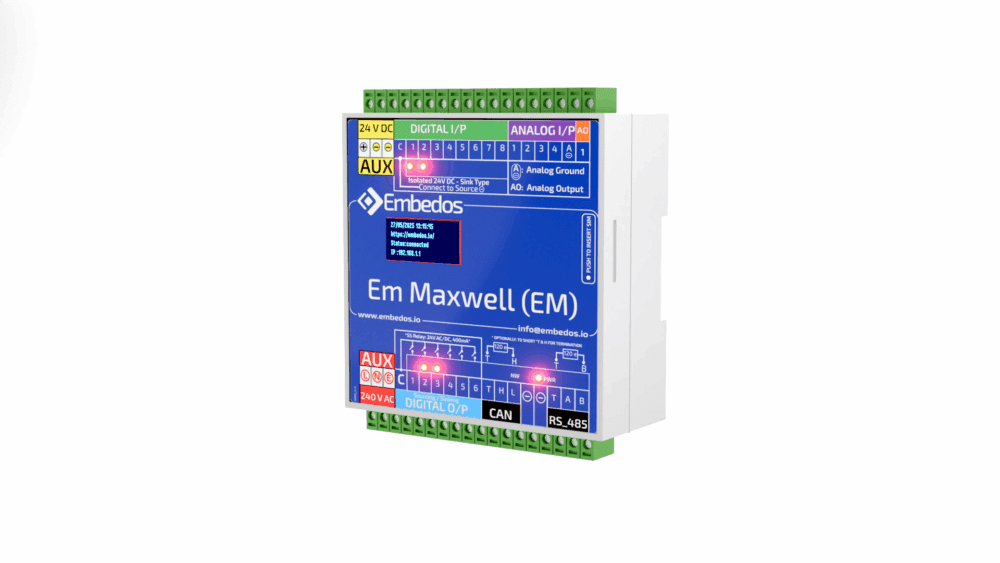

Em Maxwell (EM) Series
Embedos
Edge IoT Gateway
| Usage/Application | Industrial |
| IP Access method | Web Browser |
| Model Name/Number | EExxxx / EMxxxx |
| Power Supply | 24V DC / 240V AC |
| Antenna | Included |
| Sim Interface | Yes |
| Ethernet Ports | 1 |
| Baud Rate | 9600 |
| USB Port | 1 |
| Gprs Multi Slot Class | Yes |
| Operating System | Linux / Extensa |
| Dimensions (W x H x D) | 100X105X55 |
| On-Board Flash Storage | 8GB – 64GB |
|
Supports multiple protocols |
Modbus RTU , Modbus TCP, CAN Bus, OPC UA |
| Network Type | 4G / Wifi / Ethernet / USB |
| Country of Origin | Made in India |
| Rtu Interface | 1, 2 |
| CAN Bus Interface | 1, 2 |
Enquire about the Embedos
Edge IoT Gateway now!
Your goals are of utmost importance to us
Embedos Edge IoT Gateway
What Is The Embedos Edge IIoT Gateway ?
The Embedos IIoT Gateway is a device made to easily transfer data from Field devices to Cloud Storages. It is built for System Integraters and Machine builders, OEM’s and End Users alike, to interface PLC’s or machines directly and transfer this data to a Cloud Service.
The Embedos Edge IIoT Gateway is developed as a programmable controller as well as an IIoT gateway to completely eliminate the need of a PLC in the chain.
Product Features
The Embedos IIoT Gateway provides a Ready to Use Cloud based Web Application to view this transferred data.
With data acquisition embedded by default in all Embedos Edge devices, our Edge IIoT gateway provides an End to End IoT Solution including the services of data capture, transfer and visualization through the internet.
Product Highlights
- Fieldbus Protocol Support: Modbus TCP / RTU , CAN Open.
- Wired Connectivity: RS-232, RS – 485, Ethernet, CANbus, USB 2.0.
- Protocols: MQTT, HTTP, HTTPS, UDP, Named pipes.
- Cloud Compatible.
- Embedded Web Server.
- USB Host / Device Port.
- Wi-Fi Interface.
- GPRS Interface Programming Port
- Ethernet.
- Multiple Analog & Digital IO’s
- Local SCADA Support.
Additional Information
- Item Code: EExxxx / EMxxxx
- Production Capacity: 50 Nos
- Delivery Time: 4-7 Weeks
